How To Check Fuel Injector Spray (2000-2009 4.7L V8 Dodge Dakota And Durango)

How To Check Fuel Injector Spray (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 4.7L Dodge Dakota And Durango)

Testing fuel injector resistance with a multimeter is important —but it won't catch a clogged or restricted injector.

To truly confirm if an injector is spraying fuel correctly, you need to observe its spray pattern outside the engine.

In this tutorial, I'll walk you through how to do exactly that using a simple pulsing tool and a can of brake cleaner.

You'll learn how to set up the test safely, how to spot common spray problems, and what those results actually mean.

This method works great for diagnosing hard-to-find misfire caused by a clogged fuel injector on your 2000–2009 4.7L Dodge Dakota or Durango —without needing a scan tool or a shop visit.

APPLIES TO: This tutorial applies to the following vehicles:

  • 4.7L V8 Dodge Dakota And Durango: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009.

FUEL INJECTOR RESISTANCE TESTS:

CYLINDER MISFIRE DIAGNOSTICS:

How Spray Pattern Testing Helps You Diagnose A Bad Injector

Testing the fuel injector's resistance is a great first step —but it's only part of the full picture when diagnosing a misfire.

It's entirely possible for an injector to show the correct Ohm reading on your multimeter and still fail to spray fuel properly.

I've run into this more than a few times: the injector passes the electrical test, but once it's removed and tested for spray, it's clogged or just dribbling fuel. On a 4.7L Dodge engine, even one injector misbehaving like this can cause misfire problems across the entire bank of cylinders.

If your truck is idling rough, misfiring, or feels underpowered, this spray pattern check is a solid next step. It's not guesswork —you're directly observing the injector's spray behavior. The tool setup is simple and includes two key parts:

  • Pulsing controller: Sends timed voltage signals to simulate PCM activation.
  • Spray can adapter: Lets you pressurize the injector using a can of brake cleaner or similar product.

Once the injector is out and hooked up to the tool, a working unit will spray a clean, cone-shaped mist when activated. If it spits, dribbles, sprays unevenly, or does nothing at all —that injector is restricted or clogged internally.

This quick test takes the guesswork out of diagnosing fuel delivery issues. It's simple, affordable, and doesn't require a scan tool —just a spray kit and a few minutes of your time.

If you don't already have one, I highly recommend getting this tool —it's one of the most useful DIY diagnostic tools I've ever used, and it can save you time, money, and frustration.

Where to buy it:

Disclosure: As an Amazon Associate, I earn from qualifying purchases. Buying through these links helps support this site at no extra cost to you. I truly appreciate it!

How To Perform A Fuel Injector Spray Pattern Test

Performing A Fuel Injector Spray Pattern Test. How To Check Fuel Injector Spray (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 4.7L Dodge Dakota And Durango)

Before firing up your spray pattern test, it's important to prep a bit for safety —especially since you'll be working with flammable brake cleaner. Things can go sideways pretty fast if you're not careful.

Here are a few must-do safety tips to keep safe:

  • Know your kit: Review the instructions for your injector pulsing tool before you start.
  • Ventilation is key: Only do this in a well-ventilated area, away from open flames, sparks, or heat sources.
  • Protect your hands: Brake cleaner can irritate and dry out skin, so gloves are a smart move.
  • Shield your eyes: Always wear safety glasses —ask me how I know. The one time I didn't use them and gave myself a brake cleaner eye rinse... 10/10 would not recommend.

IMPORTANT: Whether you're reinstalling the old injector or replacing it with a new one, don't reuse old O-rings. Always install fresh ones. See: TECH TIP: Always Replace Injector O-Rings.

Once everything's set, here's how to run the test:

  1. 1

    Remove the fuel injector from the intake manifold of the affected cylinder.

  2. 2

    Detach the straw nozzle from your brake cleaner can —you won't need it for this test.

  3. 3

    Hook up the pulser tool leads to the injector's terminals (red = power, black = Ground/pulse).

  4. 4

    Attach the injector to the spray adapter fitting that connects to your can of brake cleaner.

  5. 5

    Secure the adapter to the cleaner can —make sure it's tight and leak-free.

  6. 6

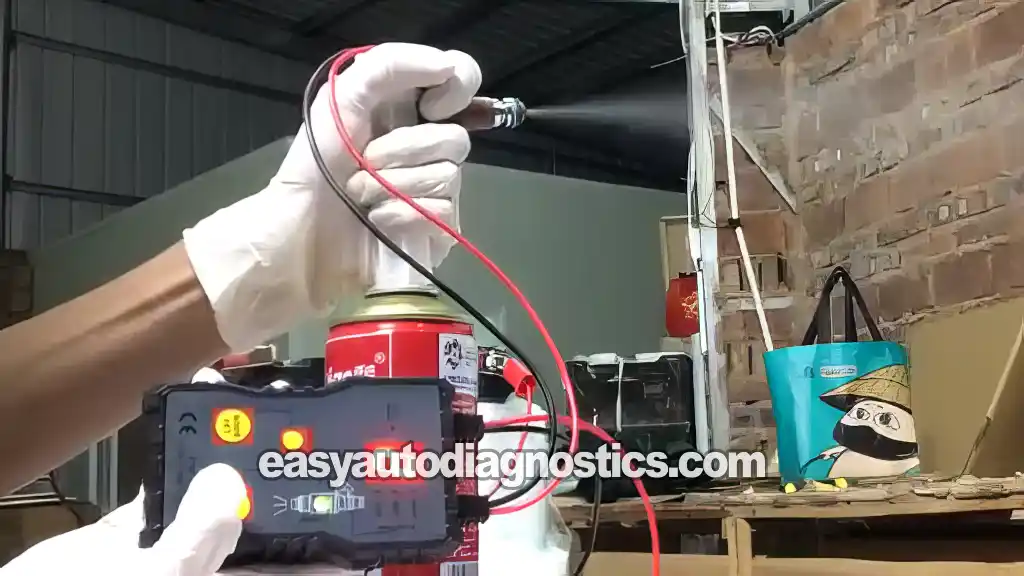

    Activate the pulser to send voltage pulses to the injector and spray brake cleaner through it. Watch the spray pattern closely.

Here's how to read your results:

CASE 1: Clean mist in a cone shape. The injector is functioning properly and atomizing fuel as it should.

If your misfire persists, the root cause may lie elsewhere —like spark, compression, or wiring issues. This guide will help you dig deeper:

CASE 2: No spray at all. The injector is completely clogged and not passing any fluid —replacement is your best option.

You can try cleaning it, but in my experience, when an injector doesn't spray anything at all, getting it to clear out with brake cleaner is just wishful thinking —10 times out of 10, it stays blocked.

CASE 3: Weak or uneven spray. This usually means there's a partial blockage inside the injector —not enough cleaner is getting through to create a proper mist.

In a lot of cases, running a few more cleaning pulses through it will clear things up and get the spray pattern looking normal again.

But if it still dribbles or sprays unevenly after several tries, it's time to replace it.

TECH TIP: Always Replace Injector O-Rings

Any time you remove a fuel injector —whether it's for testing, cleaning, or replacement— always install new O-rings before putting it back. This isn't just a smart habit —it's a safety essential.

These small rubber seals keep fuel from leaking out where the injector meets the rail. But after years of heat cycles, pressure, and exposure to fuel, they can harden, crack, or tear —sometimes just from being pulled out.

Reusing old O-rings is one of the most common causes of post-repair fuel leaks —and in the worst-case scenario, it could create a fire hazard under the hood. Don't take the chance.

Here's how to do it right:

  • Use only the correct O-rings: Make sure they're the proper size and material for your 4.7L V8 —no guessing or mismatched seals.
  • Lubricate the O-rings: A light coat of clean engine oil helps them slide into place smoothly and prevents tearing.
  • Install them carefully: Press the injector in gently and evenly —avoid twisting or forcing it, which can pinch or slice the O-ring.

Bottom line? O-rings are cheap insurance —they cost pennies but protect against expensive problems. Taking the extra step here turns a basic repair into a reliable one.
