How To Test The Fuel Injectors (2.0L Ford Escape)

How To Test The Fuel Injectors (2.0L Ford Escape)

Testing the fuel injectors on your 2.0L Ford Escape (2.0L Mazda Tribute) isn't hard. In this tutorial, I'll show you how in a step-by-step way.

I'm also gonna' show you a basic diagnostic/troubleshooting strategy that'll help you diagnose a 'dead' cylinder, in case you don't know where to start.

In Spanish You can find this tutorial in Spanish here: Cómo Probar los Inyectores de Combustible (Ford 2.0L Escape) (at:

Symptoms Of A Bad Fuel Injector

Your 2.0L Ford Escape will experience several symptoms when a fuel injector has failed.

Although a rough idle condition is the most obvious symptom, it's not the only one your Ford Escape will experience (when a fuel injector goes bad or gets clogged).

Here are a few more symptoms you may see when the fuel injector isn't spraying fuel into its respective cylinder:

  • Rough idle.
  • Lack of power.
  • Hesitation when you accelerate your 2.0L Ford Escape (2.0L Mazda Tribute) down the road.
  • Since the 2.0L Ford Escape (2.0L Mazda Tribute) is OBD II equipped, you'll see a misfire diagnostic trouble code (DTC):
    • P0300: Random Cylinder Misfire.
    • P0301: Cylinder #1 Misfire.
    • P0302: Cylinder #2 Misfire.
    • P0303: Cylinder #3 Misfire.
    • P0304: Cylinder #4 Misfire.

As you're probably already aware, fuel injectors can fail in one of several ways:

  1. The fuel injector's internal winding suffers a short-circuit or open-circuit problem. When this happens, the fuel injector stops injecting fuel.
  2. The fuel injector becomes clogged and doesn't spray correctly or not enough fuel. In tech terms: It doesn't atomize the fuel correctly.
  3. It comes on and does not turn off (due to electrical issues). In other words: it does not pulse ON and OFF but stays on all of the time spraying a tremendous amount of fuel as soon as you turn the ignition key to the ON position.

The focus of this tutorial is to see if the fuel injector's internal coil has failed (and thus causing the fuel injector to stop injecting fuel) but testing for a clogged injector isn't that much more complicated and I'll show you how in the next page.

Where To Buy The Fuel Injector And Save

The following links will help you comparison shop for the fuel injector on your 2.0L Ford Escort/Focus:

Not sure if the above fuel injectors fit your particular 2.0L Ford Escape (2.0L Mazda Tribute)? Don't worry, once you click on the links and arrive on the site, they'll make sure it fits! If it doesn't, they'll find you the right one.

Checking The Injector's Internal Resistance

How To Test The Fuel Injectors (2.0L Ford Escape)

The fuel injectors on your 2.0L Ford Escape (2.0L Mazda Tribute) have an internal coil winding. When a fuel injector fails, it's usually because this coil winding shorts out.

You and I can check the state of this coil winding (to see if it's shorted or not) by doing a simple multimeter resistance test.

NOTE: Don't have a multimeter or need to upgrade yours? Check out my recommendation: Buying A Digital Multimeter For Automotive Diagnostic Testing.

Alright, here are the steps:

  1. 1

    Disconnect the fuel injectors from their harness connectors.

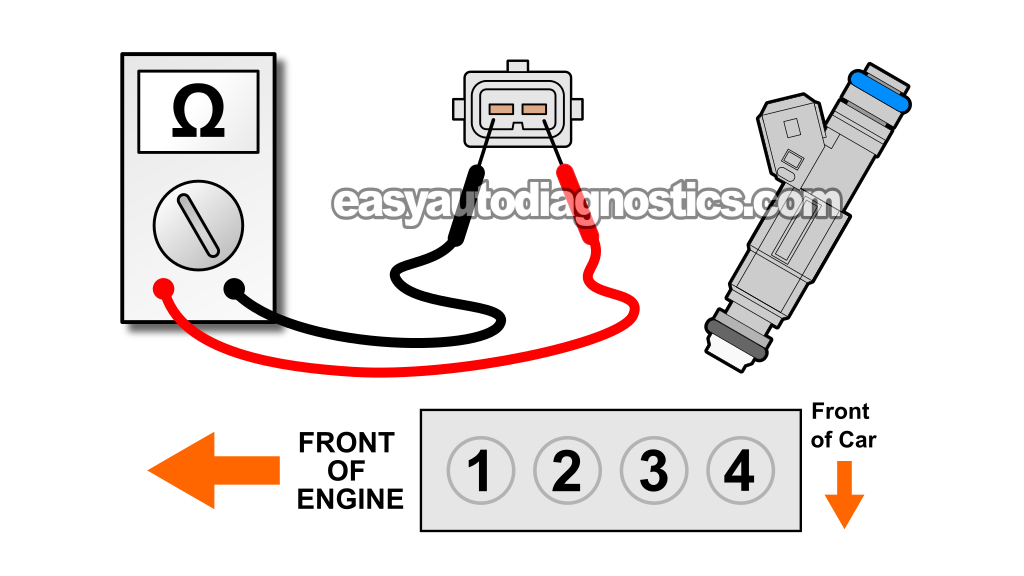

    NOTE: The illustration above will help you identify the cylinder # the fuel injector belongs to.

  2. 2

    Place your multimeter in Ohms (Ω) mode and:

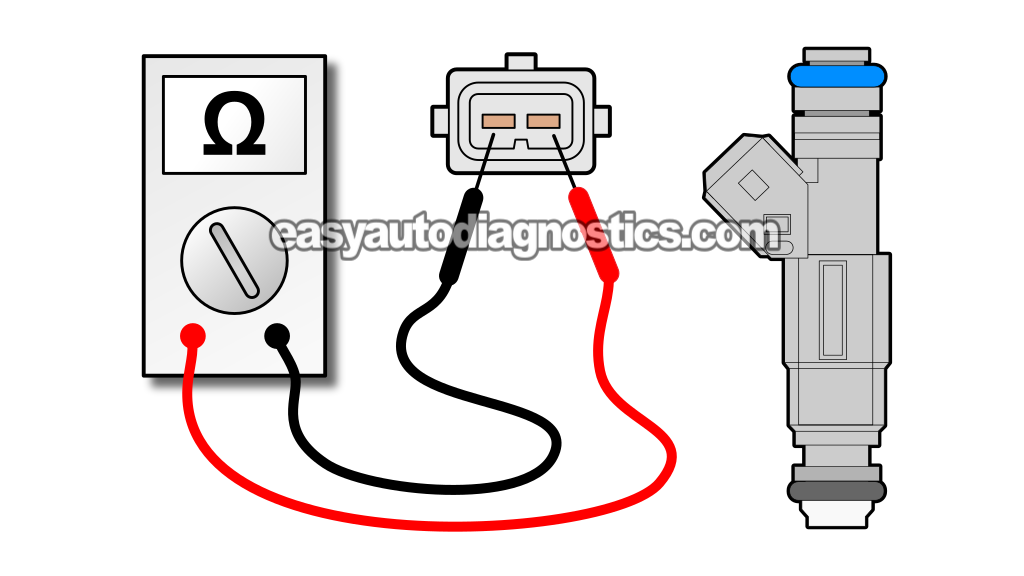

    Measure the resistance of the fuel injector across its two male spade terminals with the multimeter test leads (see the illustration above).

  3. 3

    Write down the resistance value that your multimeter records for the specific fuel injector you're testing. The illustration above will help you identify the cylinder # the fuel injector belongs to.

  4. 4

    Repeat steps 1 through 3 on the remaining fuel injectors.

    NOTE: The 2.0L Ford Escape (2.0L Mazda Tribute) fuel injector factory manual resistance specification is approximately: 11 to 18 Ohms.

Let's find out what your specific multimeter test results mean:

CASE 1: All fuel injector resistances are within specification. This tells you that your Ford Escape's (Mazda Tribute's) fuel injectors are OK. Specifically, that none are shorted or open internally.

Here's why: If any one of the fuel injectors were shorted or open internally, the fuel injector would have registered a radically different resistance value on your multimeter. Since the resistance values for a 4 were uniform then this test result tells you that they are not defective.

CASE 2: One of the fuel injectors registered a completely different resistance value. This indicates that the fuel injector is bad. Replace the fuel injector.
