ECM Power And Ground Circuits Wiring Diagram (1985-1986 5.0L V8 Ford F-Series Pickup)

  • By: Abraham Torres-Arredondo
  • Created: 09 July 2025
  • Updated: 10 July 2025
  • Articl Id: 714

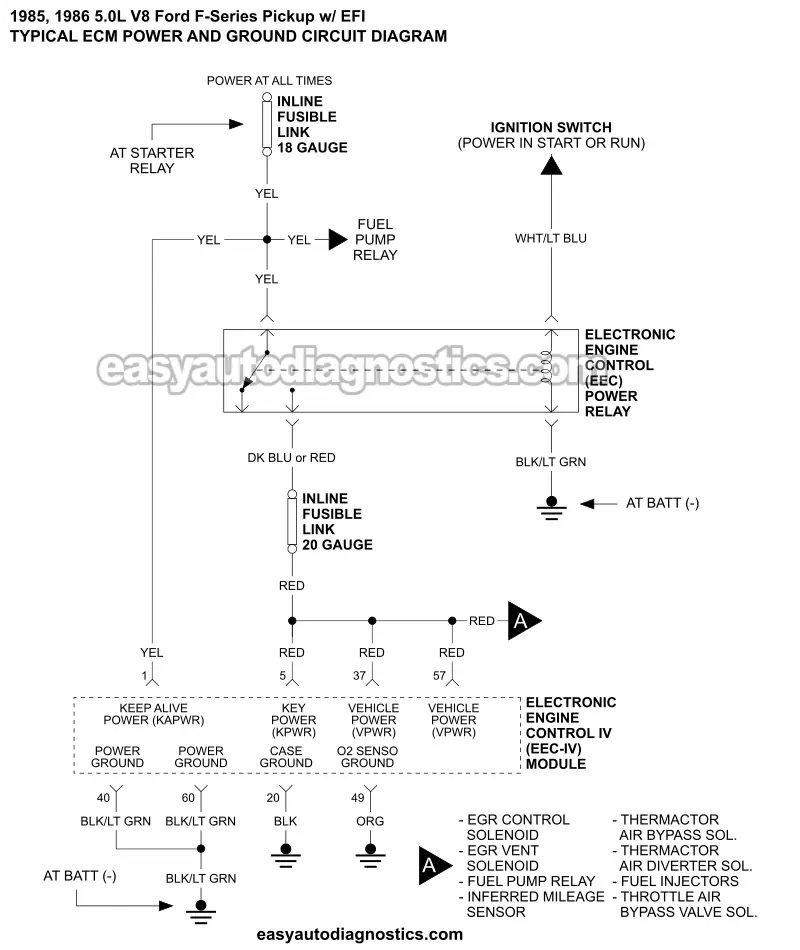

ECM Power And Ground Circuits Wiring Diagram. EEC Power Relay Circuit Diagram. (1985 5.0L V8 F150 And F250 Pickup)

APPLIES TO: This simplified ECM power and Ground circuits wiring diagram applies to the following vehicles:

  • 5.0L V8 Ford F150 Pickup (w/ EFI): 1985, 1986.
  • 5.0L V8 Ford F250 Pickup (w/ EFI): 1985, 1986.
Ray, thank you, my friend. I'm placing the affiliate links in the content block like this. Is this effective? This page only has this text and an image of the wiring diagram. I want to be effective in offering the relay:

This wiring diagram includes the following circuits:

  • EEC Power Relay.
  • EEC Module Grounds.

EEC POWER RELAY TESTS: Step-by-step guide to testing Ford’s brown EEC Power Relay with a multimeter.

WHERE TO BUY THE EEC POWER RELAY: Whenever you're ready, here are two EEC Power Relays I personally recommend —brands I've used in the field and had great results with over the years:

Buying through these links helps support this site and keeps these free wiring diagrams and tutorials coming —at no extra cost to you. It's a small way to say thanks, and I truly appreciate it.

EEC Power Relay Circuit Wiring Diagrams

More Ford F-Series Pickup Tutorials

You can find a complete list of Ford F-Series pickup wiring diagrams and tutorials in this index:

Here's a sample of the tutorials you'll find in the index:
