Fuel Pump Circuit Wiring Diagram (2000-2004 5.4L V8 Ford F250 And F350 Pickup)

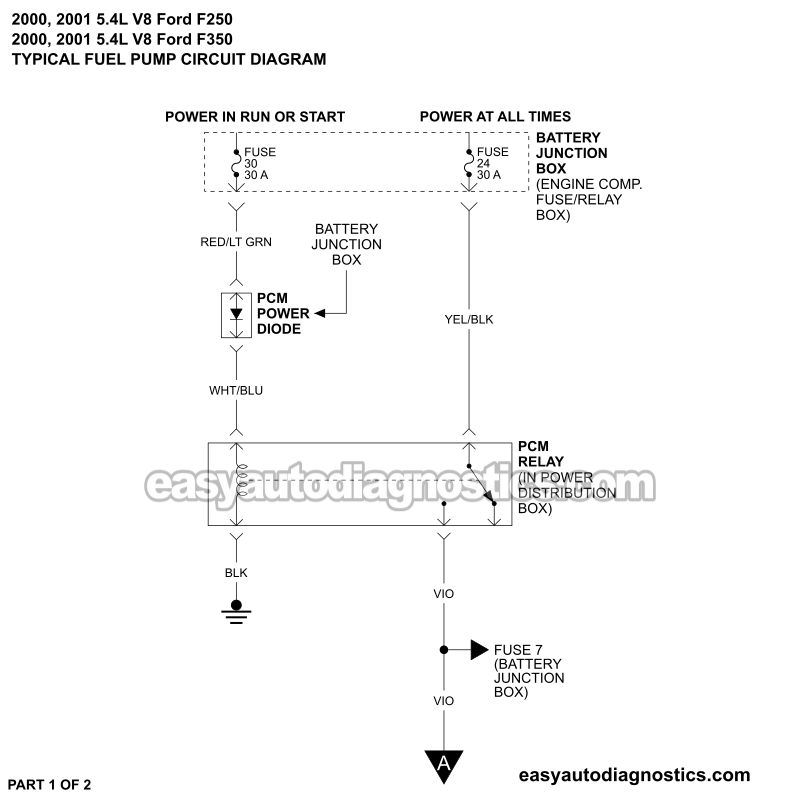

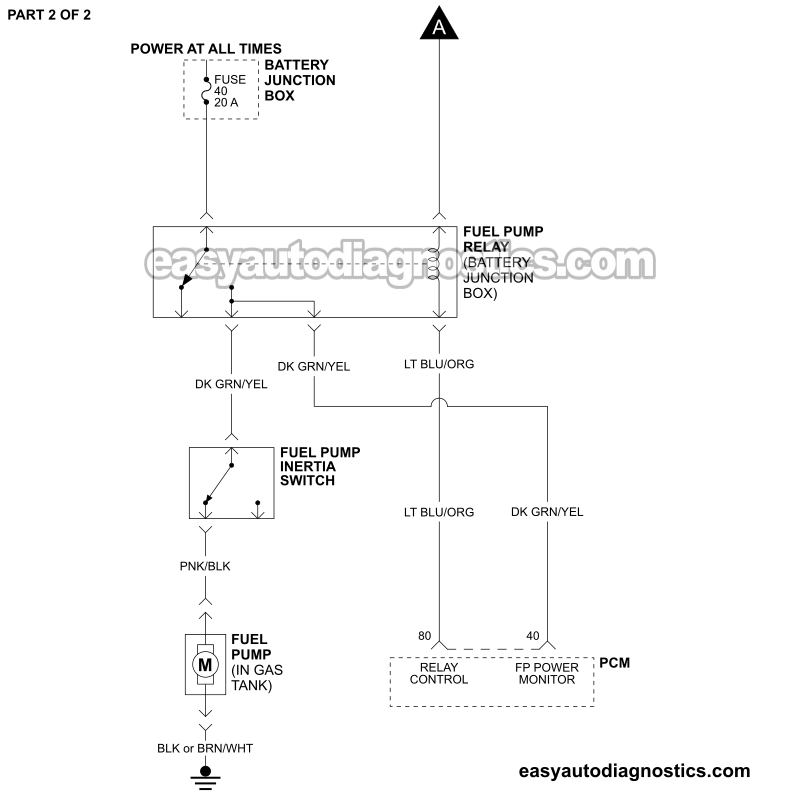

DIAGRAM 1: 2000-2001 5.4L V8 F250 Pickup

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 5.4L V8 Ford F250: 2000, 2001.
• 5.4L V8 Ford F350: 2000, 2001.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Pump Relay.
• Fuel Pump.
• Fuel Pump Inertia Switch.
• PCM Power Relay.

FUEL PUMP DIAGNOSTIC TESTS:

• How To Test The Fuel Pump (1997-2004 4.6L, 5.4L V8 Ford F150, F250, And F350).
• Power To Fuel Pump Check (1997-2003 4.6L, 5.4L V8 Ford F150, F250, And F350).
• Fuel Pressure Specifications (1997-2010 4.6L, 5.4L V8 Ford F150, F250, And F350).

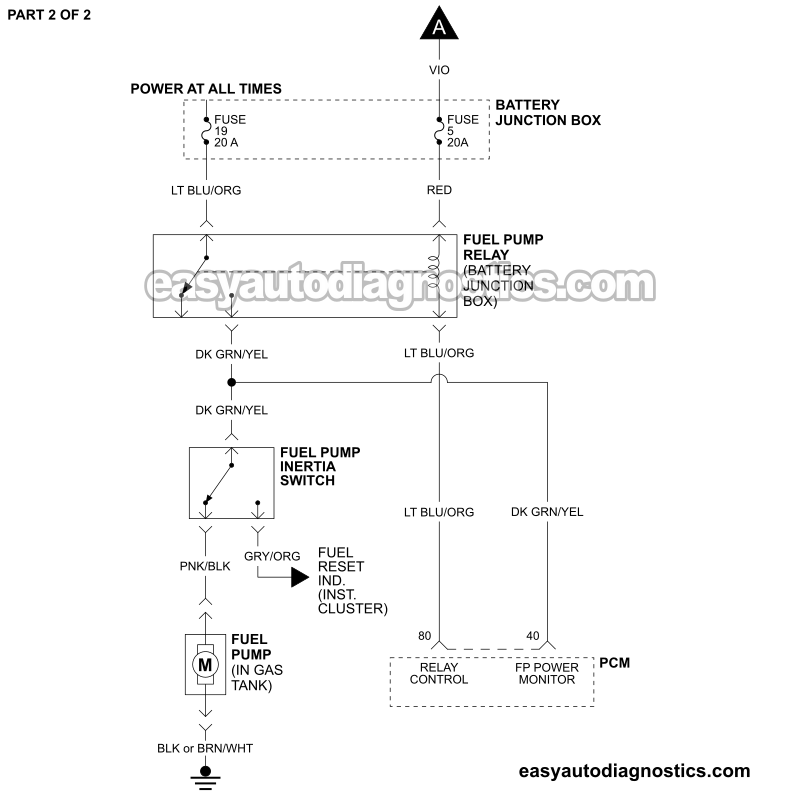

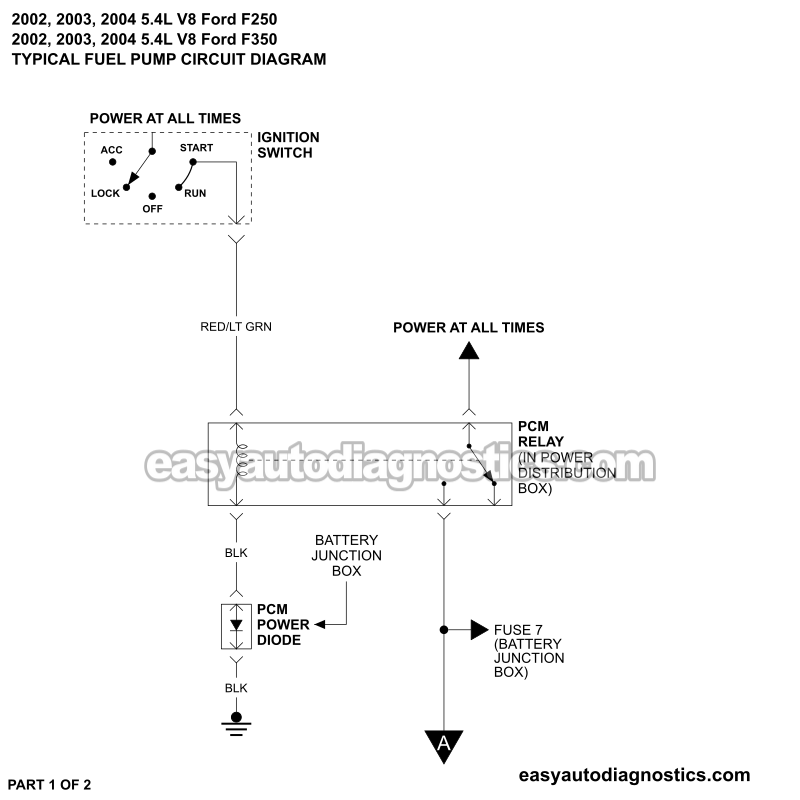

DIAGRAM 2: 2002-2003 5.4L V8 F250 Pickup

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 5.4L V8 Ford F250: 2002, 2003, 2004.
• 5.4L V8 Ford F350: 2002, 2003, 2004.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Pump Relay.
• Fuel Pump.
• Fuel Pump Inertia Switch.
• PCM Power Relay.
