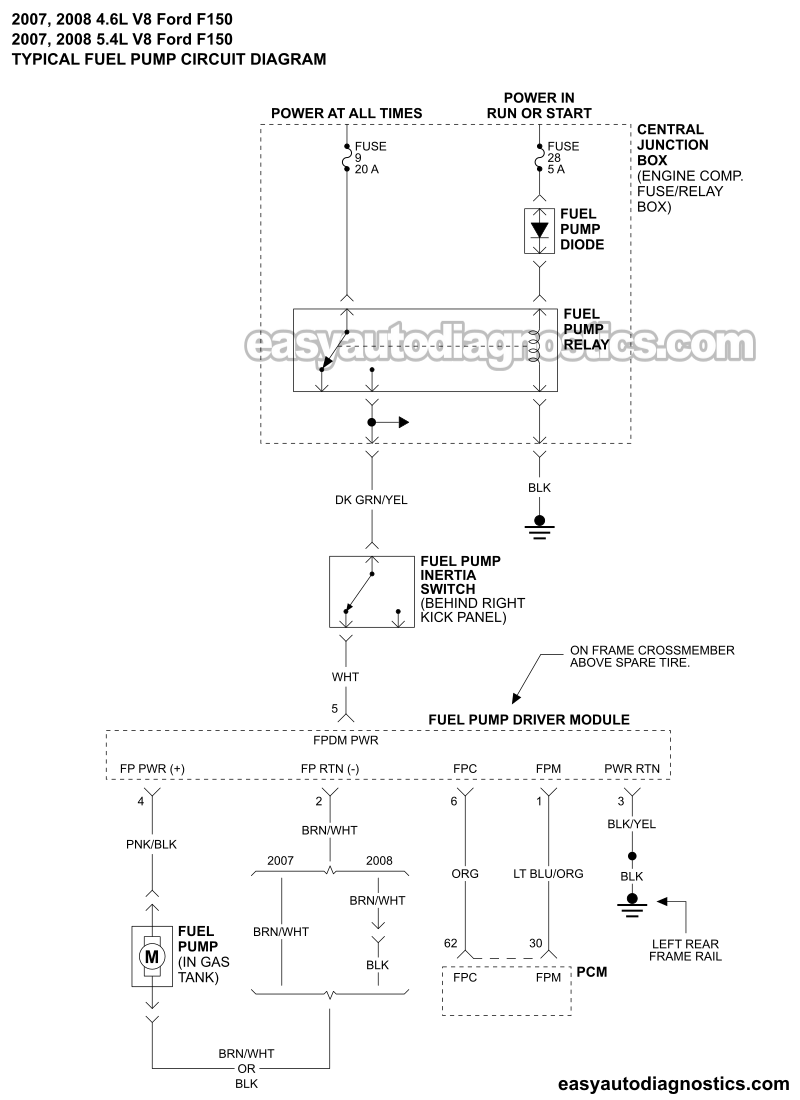

Fuel Pump Circuit Wiring Diagram (2007-2008 4.6L, 5.4L V8 Ford F150 Pickup)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 4.6L V8 Ford F150: 2007, 2008.
• 5.4L V8 Ford F150: 2007, 2008.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Pump Relay.
• Fuel Pump Inertia Switch.
• Fuel Pump Driver Module (FPDM).
• Fuel Pump.
