DIAGRAM 1: 1998-2001 MAP Sensor Circuit Diagram
APPLIES TO: This manifold absolute (MAP) sensor circuit wiring diagram applies to the following vehicles:
- 2.2L Isuzu Amigo: 1998, 1999, 2000.
- 2.2L Isuzu Rodeo: 1998, 1999, 2000, 2001.
MAP SENSOR TESTS: The following tutorial will show you how to test the MAP sensor step by step:

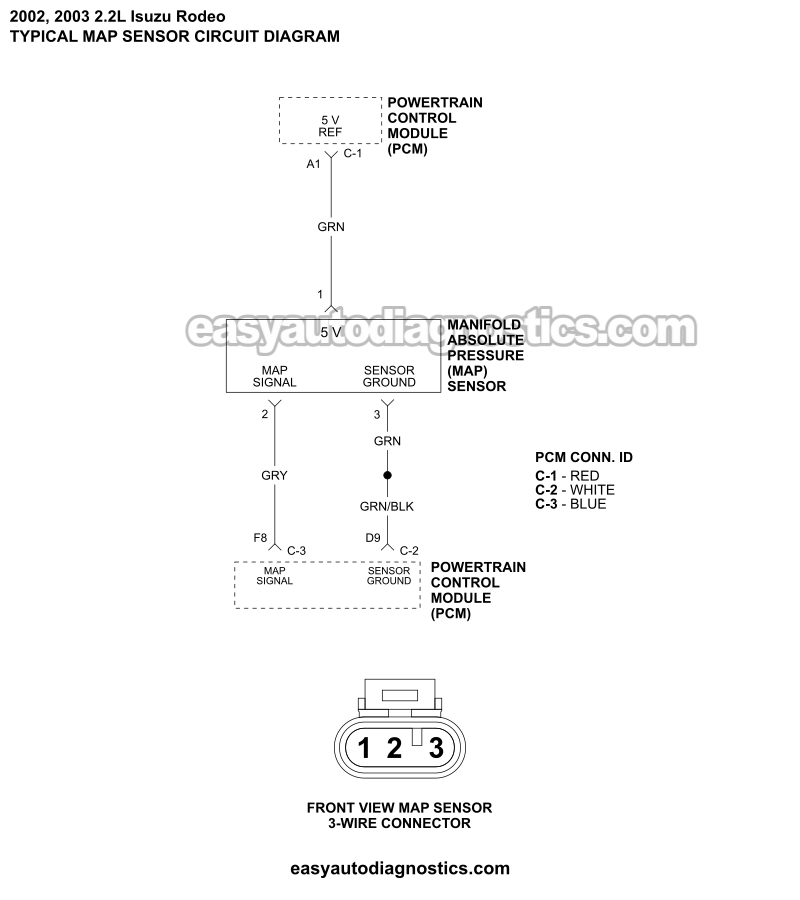

DIAGRAM 2: 2002-2003 MAP Sensor Circuit Diagram
APPLIES TO: This manifold absolute (MAP) sensor circuit wiring diagram applies to the following vehicles:
- 2.2L Isuzu Rodeo: 2002, 2003.
MAP SENSOR TESTS: The following tutorial will show you how to test the MAP sensor step by step:
More 2.2L Isuzu Rodeo And Amigo Diagnostic Tutorials
You can find a complete list of 2.2L Isuzu Rodeo and Amigo tutorials and wiring diagrams in this index:
Here's a small sample of the tutorials you'll find in the index:
- How To Test The TPS (1998-2003 2.2L Isuzu Amigo And Rodeo).
- How To Test For A Blown Head Gasket (1998-2003 2.2L Isuzu Amigo And Rodeo).
- How To Test Engine Compression (1998-2003 2.2L Isuzu Amigo And Rodeo).
- How To Test The Fuel Pump (1998-2003 2.2L Isuzu Rodeo, Amigo).
