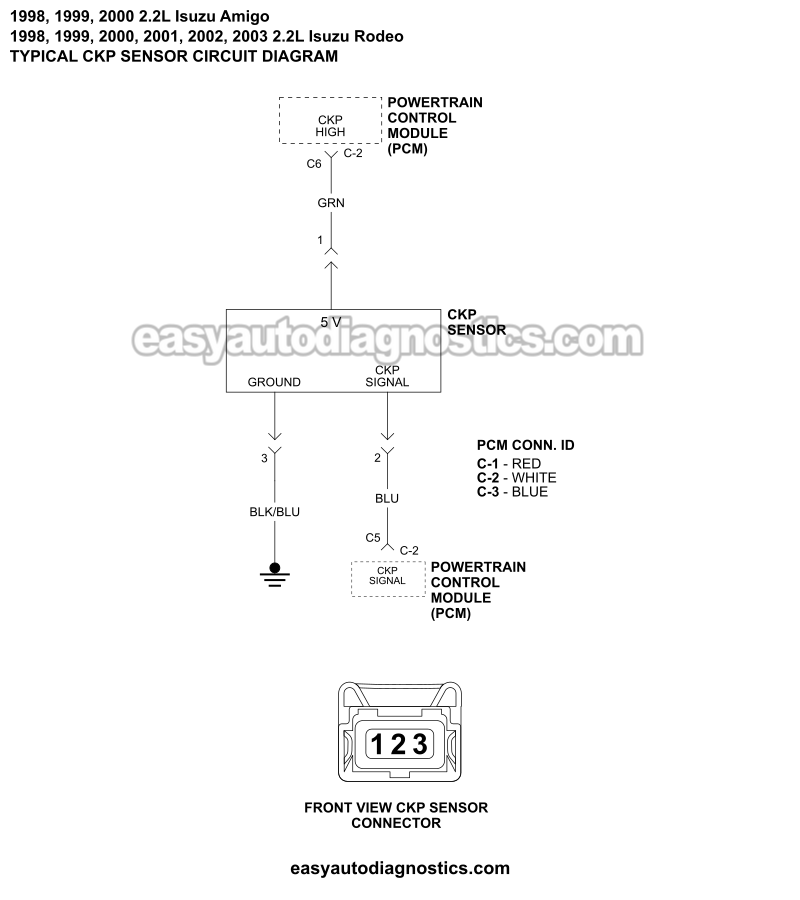

CKP Sensor Circuit Wiring Diagram (1998-2003 2.2L Isuzu Rodeo, Amigo)

APPLIES TO: This crankshaft position (CKP) sensor circuit wiring diagram applies to the following vehicles:

• 2.2L Isuzu Amigo: 1998, 1999, 2000.
• 2.2L Isuzu Rodeo: 1998, 1999, 2000, 2001, 2002, 2003.

CKP SENSOR TESTS: The following tutorial will show you how to test the CKP sensor step by step:

• How To Test The CKP Sensor (1998-2003 2.2L Isuzu Rodeo, Amigo).
