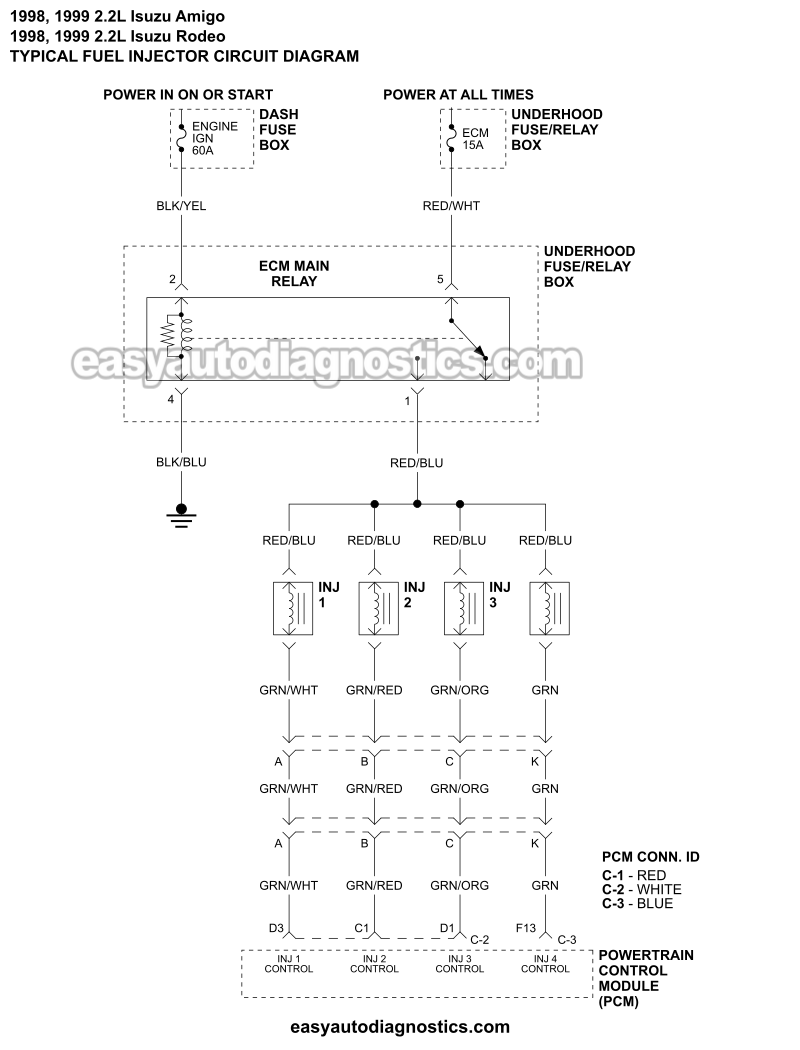

Fuel Injector Circuit Wiring Diagram (1998-1999 2.2L Isuzu Rodeo, Amigo)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 2.2L Isuzu Amigo: 1998, 1999.
• 2.2L Isuzu Rodeo: 1998, 1999.

FUEL INJECTOR TESTS: The fuel injectors can easily be tested with a multimeter. I've written a step-by-step tutorial that'll help you with it:

• How To Test The Fuel Injectors (1998-2003 2.2L Isuzu Rodeo, Amigo).

2000-2003 FUEL INJECTOR CIRCUIT WIRING DIAGRAM:

• Fuel Injector Circuit Wiring Diagram (2000-2003 2.2L Isuzu Rodeo, Amigo).
