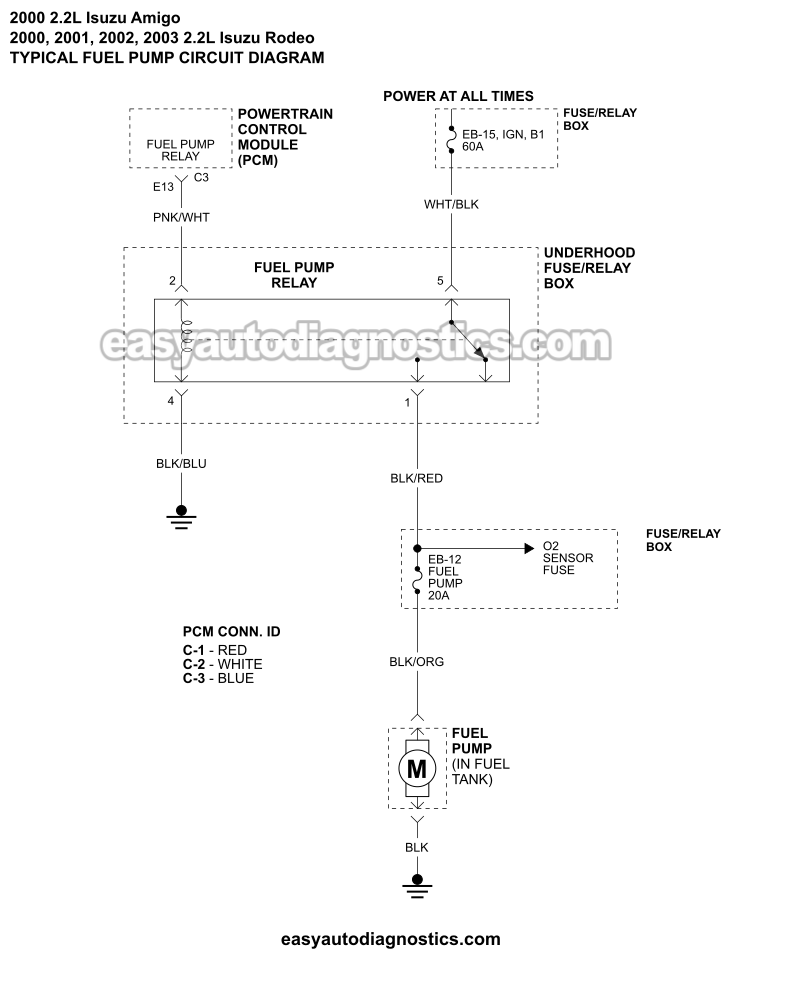

Fuel Pump Circuit Wiring Diagram (2000-2003 2.2L Isuzu Rodeo, Amigo)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 2.2L Isuzu Amigo: 2000.
• 2.2L Isuzu Rodeo: 2000, 2001, 2002, 2003.

This fuel pump circuit wiring diagram includes the following circuits

• Fuel Pump Relay.
• Fuel Pump.

FUEL PUMP PRESSURE TEST: The fuel pump can easily be tested with a fuel pressure test gauge. I've written a step-by-step tutorial that'll help you with it:

• How To Test The Fuel Pump (1998-2003 2.2L Isuzu Rodeo, Amigo).

1998-1999 FUEL PUMP CIRCUIT WIRING DIAGRAM:

• Fuel Pump Circuit Wiring Diagram (1998-1999 2.2L Isuzu Rodeo, Amigo).
