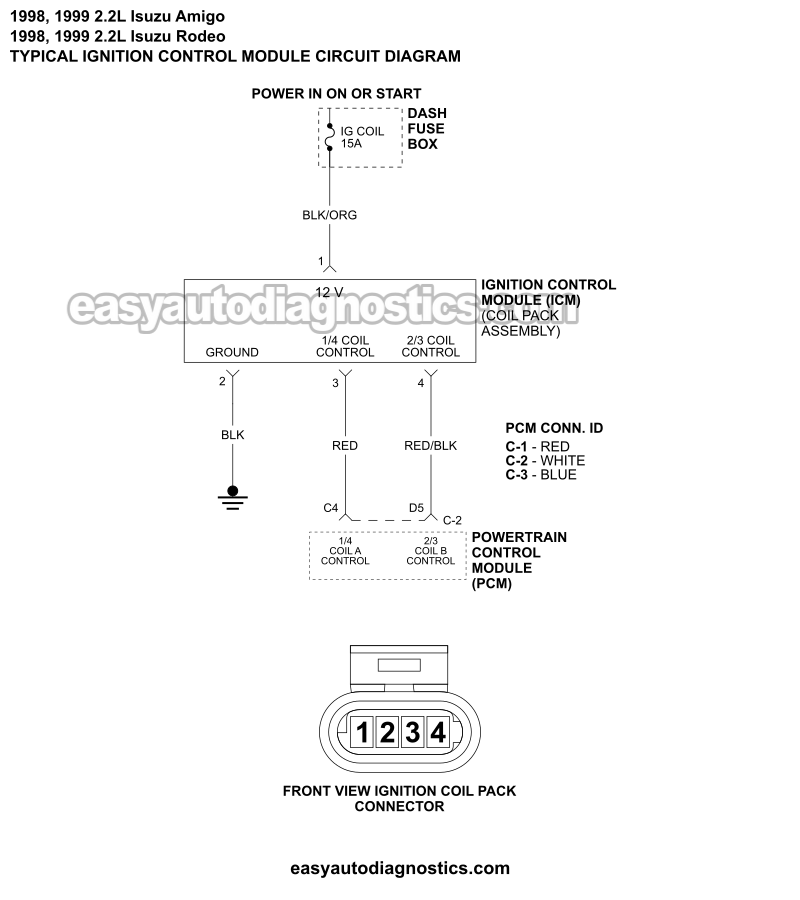

Ignition Control Module Circuit Wiring Diagram (1998-1999 2.2L Isuzu Rodeo, Amigo)

APPLIES TO: This ignition coil/ignition control module circuit wiring diagram applies to the following vehicles:

• 2.2L Isuzu Amigo: 1998, 1999.
• 2.2L Isuzu Rodeo: 1998, 1999.

IGNITION COIL PACK TESTS: The ignition coil pack and its internal ignition control module can easily be tested with a few simple tools. I've written a step-by-step tutorial that'll help you with it:

• How To Test The Ignition Coil Pack (1998-2003 2.2L Isuzu Rodeo, Amigo).

2000-2003 IGNITION CONTROL MODULE CIRCUIT WIRING DIAGRAM:

• Ignition Control Module Circuit Wiring Diagram (2000-2003 2.2L Isuzu Rodeo, Amigo).

More 2.2L Isuzu Rodeo And Amigo Diagnostic Tutorials

You can find a complete list of 2.2L Isuzu Rodeo and Amigo tutorials and wiring diagrams in this index:

• 2.2L Isuzu Rodeo, Amigo Index of Articles.
