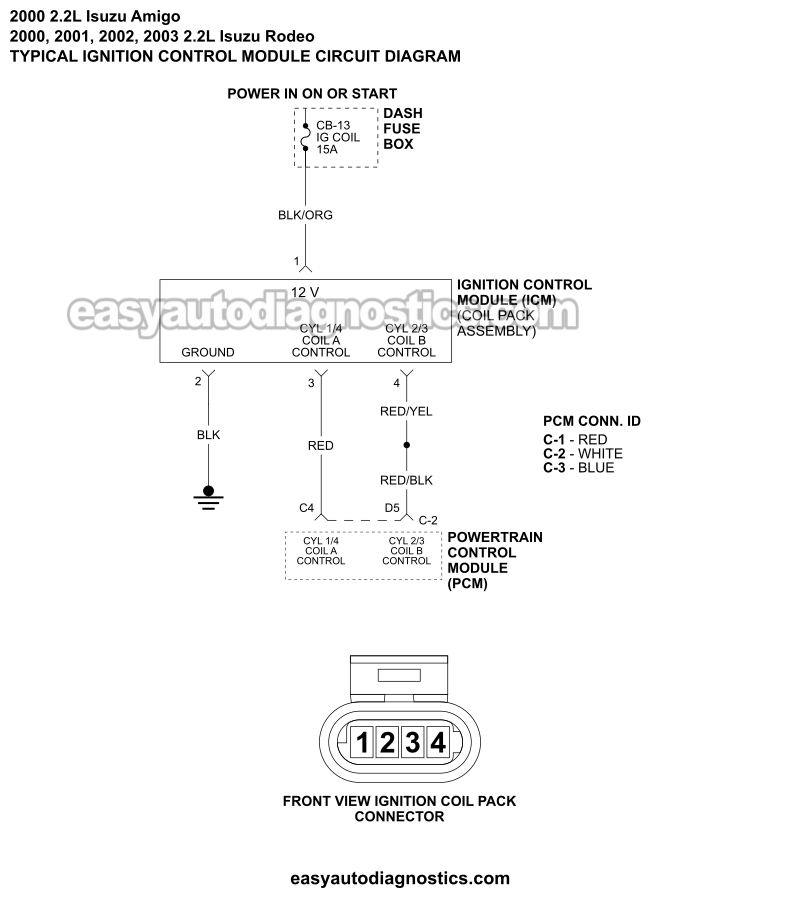

Ignition Control Module Circuit Wiring Diagram (2000-2003 2.2L Isuzu Rodeo, Amigo)

APPLIES TO: This ignition coil/ignition control module circuit wiring diagram applies to the following vehicles:

• 2.2L Isuzu Amigo: 2000.
• 2.2L Isuzu Rodeo: 2000, 2001, 2002, 2003.

IGNITION COIL PACK TESTS: The ignition control module (ICM) is integrated into the ignition coil assembly, but testing it isn't difficult. In the following tutorial, I'll show you how to test both the ignition coil assembly and its internal ICM step by step:

• How To Test The Ignition Coil Pack (1998-2003 2.2L Isuzu Rodeo, Amigo).

1998-1999 IGNITION CONTROL MODULE CIRCUIT WIRING DIAGRAM:

• Ignition Control Module Circuit Wiring Diagram (1998-1999 2.2L Isuzu Rodeo, Amigo).
